I wanted to create a tool for building web applications easily using Foxx & ArangoDB. I also wanted to have an easy way to build, develop my app and deploy it with ease. So I did create foxx-framework !
With foxx-framework you can create new skeleton apps with everything configurated. It comes with :

• brunch for live reload and building assets for production
• Riotjs for building web apps and widgets.
• UIKit for designing views.

Foxx-framework allow you to create your app localy and then deploy your code on your server with ease. We use mina to automate the deployment.

Install requirements

Foxx-framework needs nodejs and yarn installed. ArangoDB >= 3.1 of course is needed.

To deploy your application, you'll need Ruby too.

Install foxx-framework

Create your first app

You need first to create an database within ArangoDB web UI.

This action will create the skeleton app with a simple login authentification.

You have to create some symlinks, please look at the command output, latests lines will show you how to create symlinks. Adapt them if needed.

This will install everything you need to run the application.

Setup the application

Create an account within the app UI and validate it by adding the field { "a": true } to your user object (via ArangoDB UI). So next time you'll login it will be OK.

└── sample_app
    ├── Gemfile
    ├── app
    │   ├── assets
    │   │   ├── fonts
    │   │   ├── img
    │   │   ├── index.html
    │   │   └── login.html
    │   ├── css
    │   │   └── css.scss
    │   ├── js
    │   │   ├── common.js
    │   │   └── js.js
    │   ├── vendors
    │   └── widgets
    │       ├── loading.html.tag
    │       └── login.html.tag
    ├── brunch-config.js
    ├── config
    │   ├── deploy.rb
    │   └── local_env.yml.sample
    ├── foxx
    │   └── auth
    │       └── APP
    │           ├── README.md
    │           ├── main.js
    │           ├── manifest.json
    │           ├── package.json
    │           ├── scripts
    │           │   ├── lost-password.js
    │           │   ├── send-mail.js
    │           │   └── setup.js
    │           └── test
    │               └── example.js
    ├── package.json
    └── yarn.lock


Run the app

Command

This will start the listener and server... Any change on your source code will run a live reload in your browser.

Output

04 Oct 16:38:41 - info: application started on http://localhost:3333/

04 Oct 16:38:41 - info: compiled 20 files into 4 files, copied 4 in 2.5 sec

Add a CRUD to your app

Commands

It will create a Foxx service called posts and will also create a RiotJS widgets called app/widgets/posts.html.tag

Once CRUD created open foxx/posts/APP/main.js at line 30 (line 3 on the code below) ...

var loadFields = function() {
  // { r: new_row, c: classname, n: name/id, t: type, j: joi validation, l: label, d: data list }
  fields = [
  ]

  schema = {}
  each(fields, function(f) {
    schema[f.n] = f.j
  })
}


... and define your model.

var loadFields = function() {
  // { r: new_row, c: classname, n: name/id, t: type, j: joi validation, l: label, d: data list }
  fields = [
    { r: true, c: "1-1", n: "title", t: "string", j: joi.string().required(), l: "Title" },
    { r: true, c: "1-2", n: "date", t: "date", j: joi.string().required(), l: "Publishing Date" },
    { r: false, c: "1-2", n: "draft", t: "list", j: joi.string().required(), l: "Draft?", d: [["y", "Yes"], ["n", "No"]] },
    { r: true, c: "1-1", n: "text", t: "text", j: joi.string().required(), l: "Text"}
    { r: true, c: "1-2", n: "picture", t: "image", j: joi.string(), l: "Pictures"}
    { r: false, c: "1-2", n: "asset", t: "file", j: joi.string(), l: "Files"}
  ]

  schema = {}
  each(fields, function(f) {
    schema[f.n] = f.j
  })
}

Generate a service and a collection settings with a single row. The widget will allow you to edit and update the row

Generate an empty service, a widget and a collection infos.

Just create a service v1. No widget, no collection.

Activating Search functionality

data.search = [data.title, data.text, data.date].join(" ")

So when you'll create or modify your object, the search field will be up to date. You can start using the search bar and press enter to filter your content using the full text search engine.

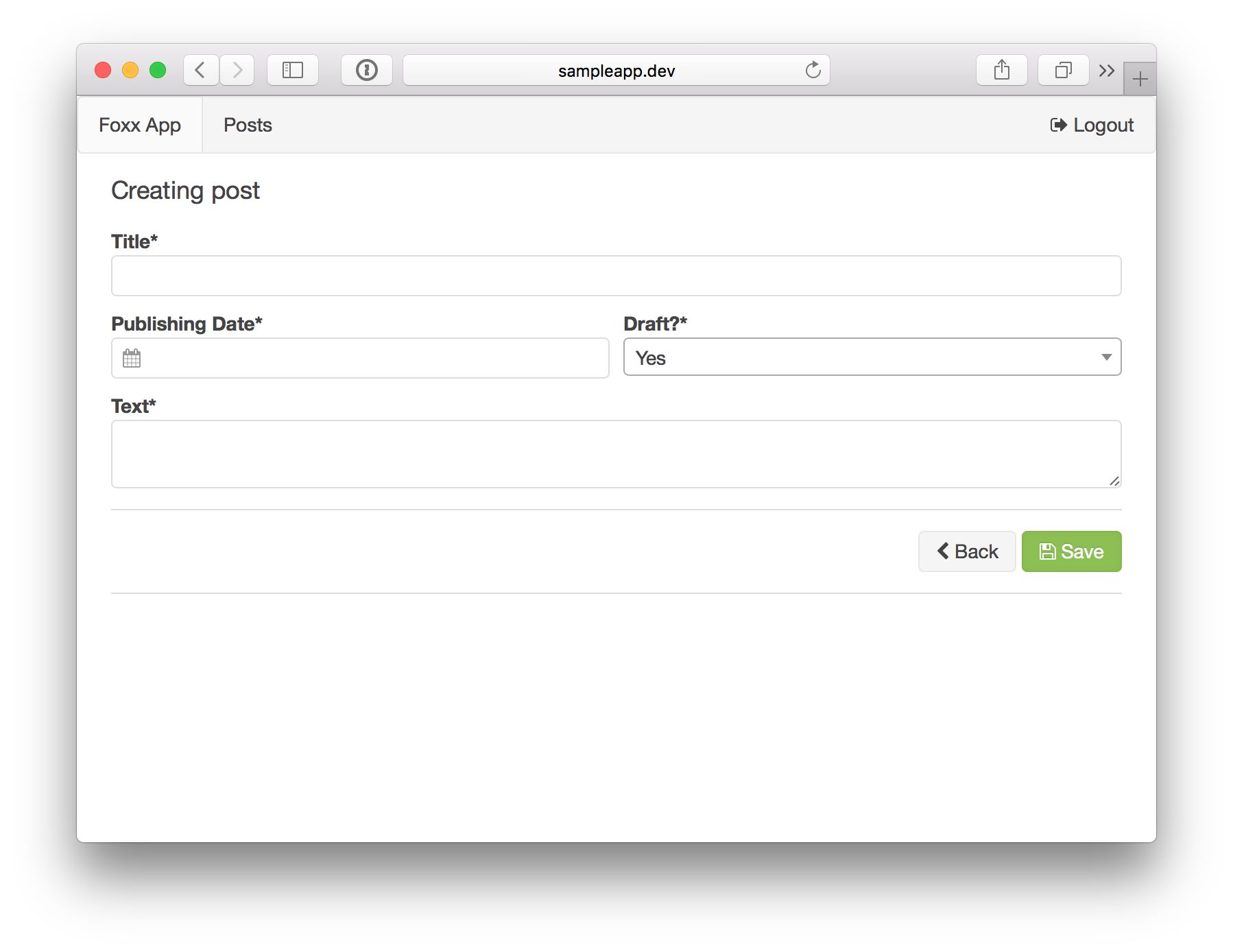

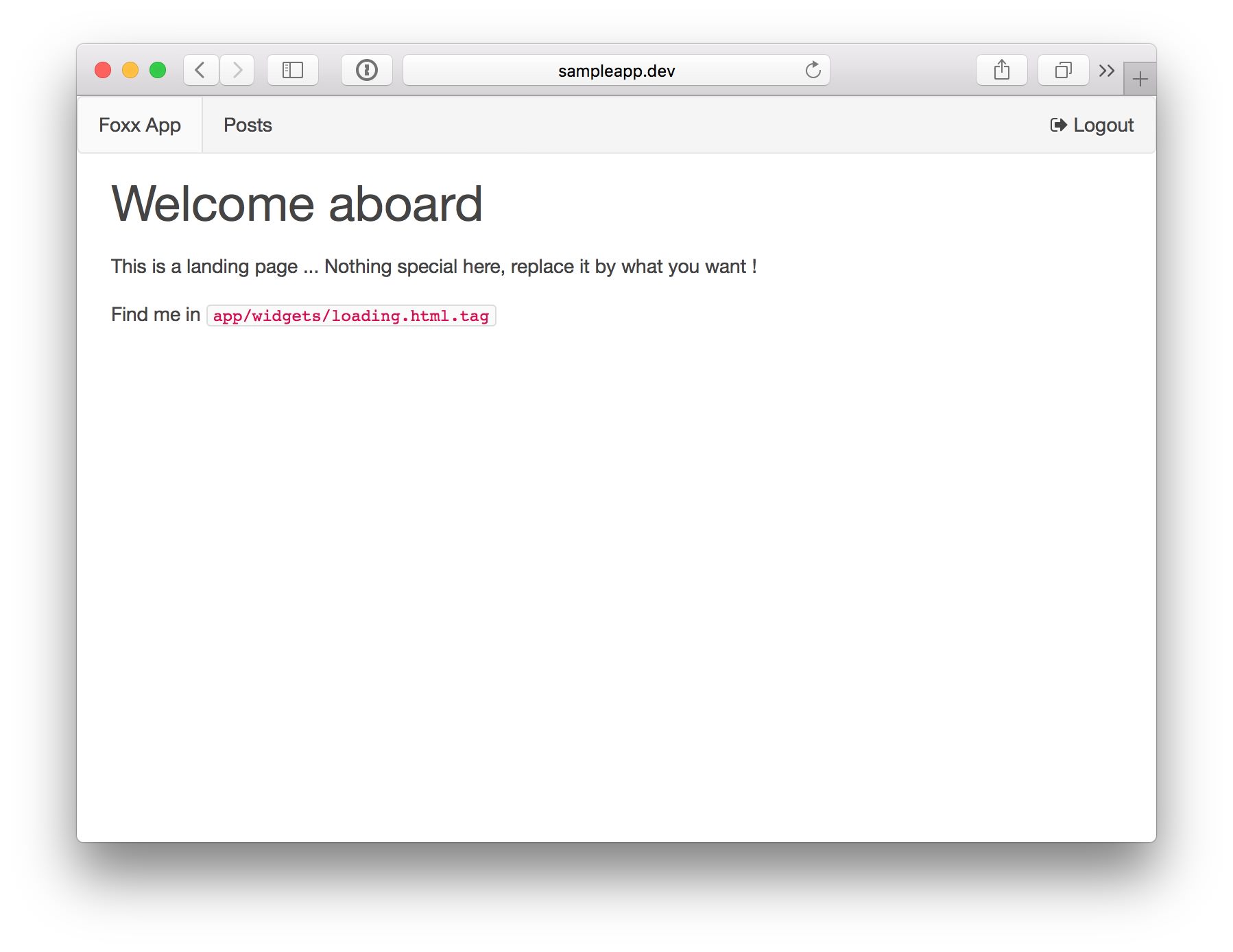

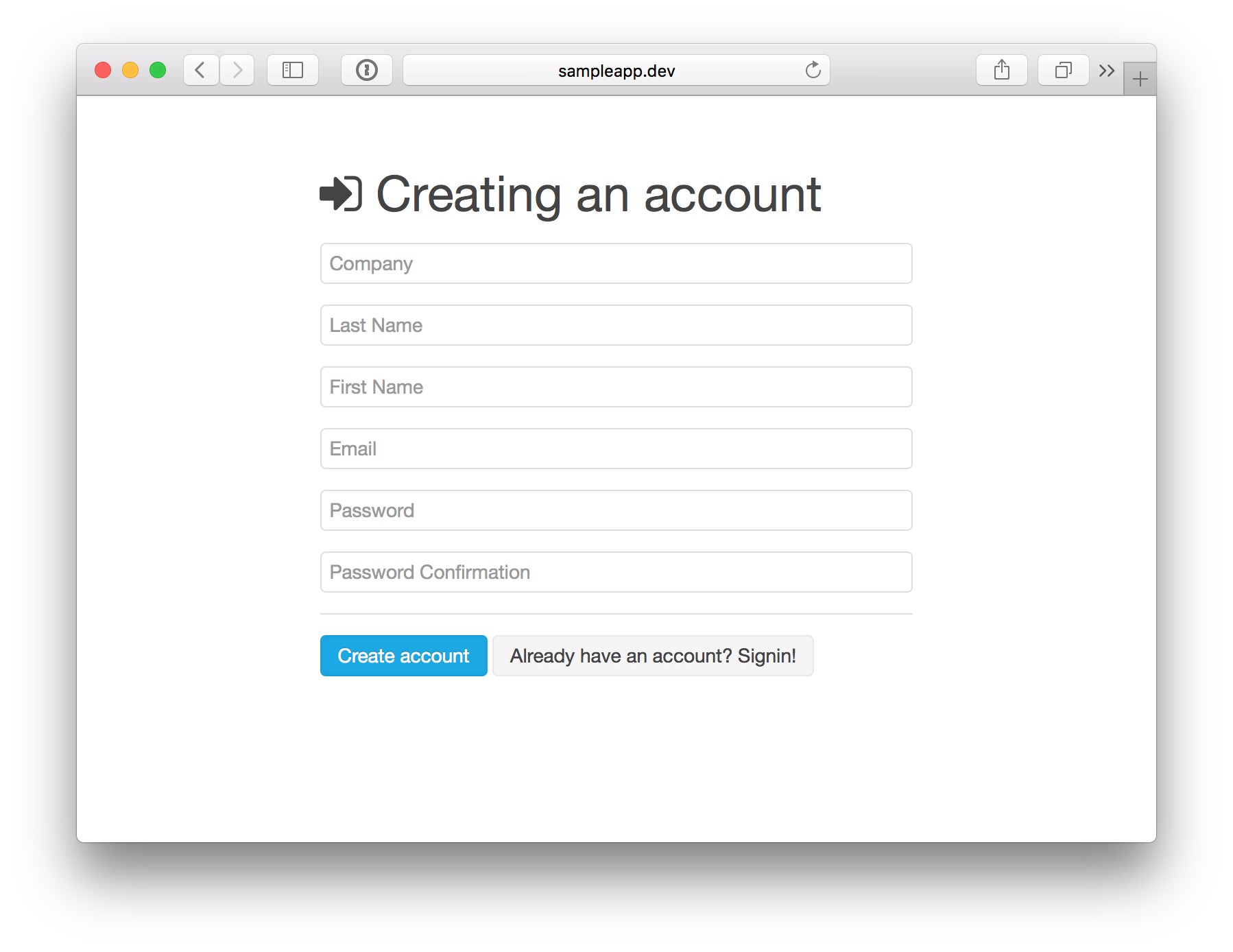

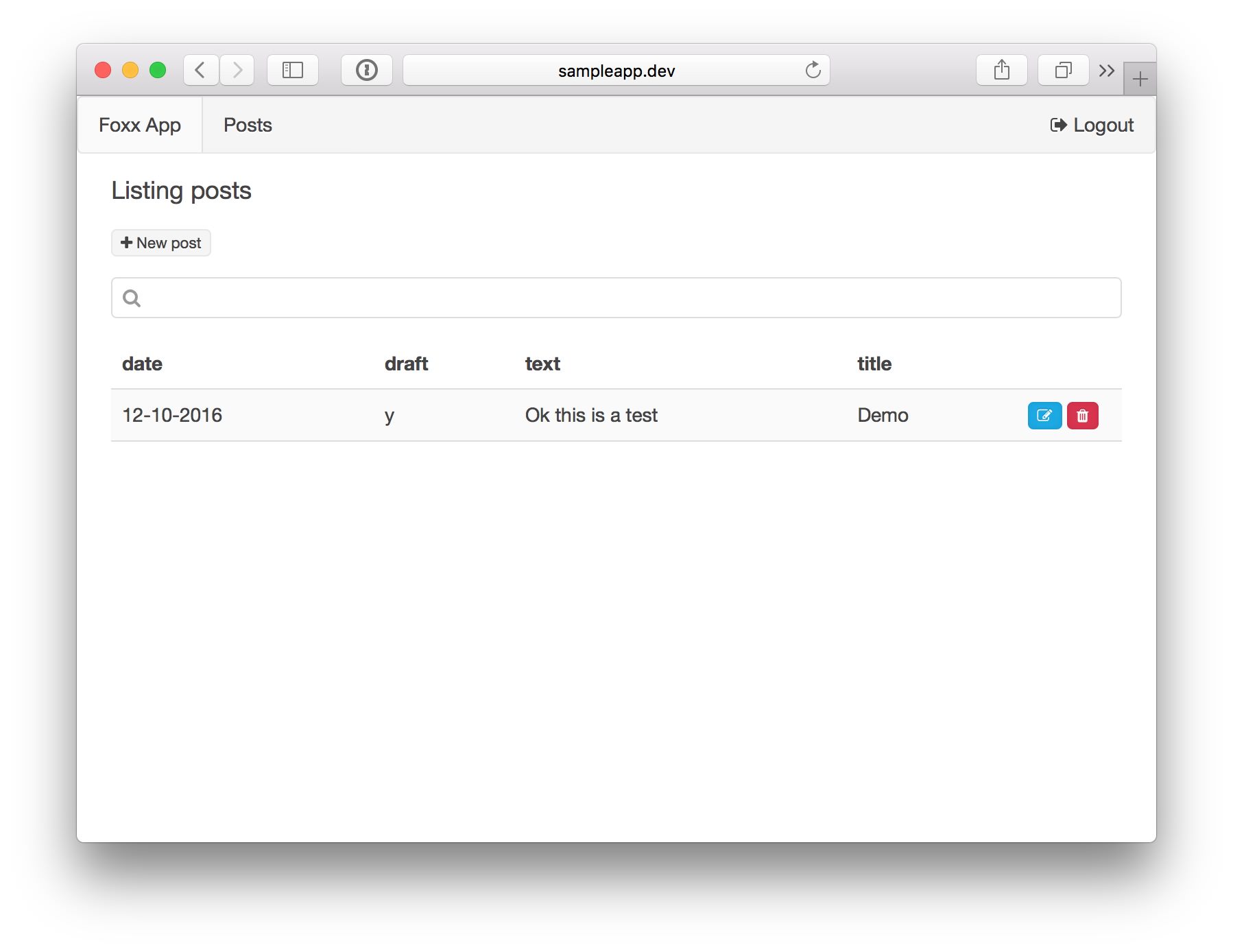

Screenshots
