Web Component Standard
Free of any frameworks, setups, configs, build steps or packaging. Can be used with any framework or just with vanilla javascript
Easy Usage
Use It just like any other HTML Tag, Change its attribute using JavaScript and see it react to those changes. Basic knowledge of HTML is all that's required
Fully Customizable
Style it to your heart's content. Change font, logo, colors and theme. Inject external HTML or embed into another HTML document.
Small And Fast
Minimal dependencies, no runtime and no virtual DOM ensures lowest memory consumption, Just native and raw speed of modern browser.
Seamlessly interoperable
Loved by tech writers, designers, dev-ops, testers and developers alike, due to its simplicity, interoperability and powerful features. No special build-steps, runtime or framework required
Integrated Console
Comes with built in console to Try out the APIs. Supports authentication mechanism. No validation ensures, you can test negative cases.
Better Usability
Browse the spec with minimal clicks. All models & examples are expanded by default, eliminates the need to click and reveal. Requests and Responses are pre-populated with sample data.

Quickstart (DEMO)

Just copy the below code and save it in an html file. Then open it using a browser

  <!doctype html> <!-- Important: must specify -->
  <html>
  <head>
    <meta charset="utf-8"> <!-- Important: rapi-doc uses utf8 charecters -->
    <script src="https://unpkg.com/rapidoc/dist/rapidoc-min.js"></script>
  </head>
  <body>
    <rapi-doc
      spec-url="https://api.apis.guru/v2/specs/bitbucket.org/2.0/swagger.json"
    > </rapi-doc>
  </body>
  </html>

Attributes

Attribute Description Default
spec-url url of the OpenAPI spec to view (empty)
server OpenAPI spec has a provision for providing the server url. The UI will list all the server URLs provided in the spec. The user can then select one URL to which he or she intends to send API calls while trying out the apis. However, if you want to provide an API server of your own which is not listed in the spec, you can use this property to provide one. It is helpful in the cases where the same spec is shared between multiple environment say Dev and Test and each have their own API server. (empty)
allow-authentication Authentication feature, allows the user to select one of the authentication mechanism thats available in the spec. It can be http-basic, http-bearer or api-key. If you dont want your users to go through the authentication process, instead want them to use a pre-generated api-key then you may hide authentication section by setting this attribute to false and provide the api-key details using various api-key-???? attributes. true
api-key-name Name of the API key that will be send while trying out the APIs (empty)
api-key-value Value of the API key that will be send while trying out the APIs Authorization
api-key-location determines how you want to send the api-key. allowed values are header or query header
allow-spec-url-load If set to 'false', user will not be able to load any spec url from the UI. true
allow-spec-file-load If set to 'false', user will not be able to load any spec file from the local drive. This attribute is applicable only when the device width is more than 768px, else this feature is not available true
allow-search If set to 'false', user will not be able to search APIs. true
allow-try 'TRY' feature allows you to make REST calls to the API server. To disable this feature set it to false true
show-info show/hide the documents info section
Info section contains information about the spec, such as the title and description of the spec, the version, terms of services etc. In certain situation you may not need to show this section. For instance you are embedding this element inside a another help document. Chances are, the help doc may already have this info, in that case you may want to hide this section. 		true
show-header show/hide the header.
If you dont want your user to open any other api spec, other than the current one, then set this attribute to false		 true
heading-text Heading Text on top-left corner (empty)
header-color Hex color code for the header's background #444444
primary-color Hex color code on various controls such as buttons, tabs #FF791A
regular-font Font Name(s) to be used for regular text rapidoc, Helvetica, Arial
mono-font Font Name(s) to be used for monospaced text Monaco, 'Andale Mono', 'Roboto Mono'
theme light, dark light
layout layout helps in placement of your request/response sections. The allowed values are 'row' or 'column'. In column layout, request & response sections are placed one below the other, In row layout request & response sections are placed side by side. This attribute is applicable only when the device width is more than 768px. row
resolve-circular-refs RapiDoc attempts to resolve all the circular references (if prsent) in the api spec. However if you face any performance issues while loading the spec, then you can disable it by setting it to 'false' Our recommendation is to leave it as the default value of 'true'. true

Slots

Slot Name Description
(default) any content placed inside <rapi-doc> tag, will be shown immidiately under the header and above the info section
logo use this slot to replace the logo
footer The conents of this slot will appear at the bottom of the spec

Examples & Demos

Basic Example ( DEMO )

  <rapi-doc
    spec-url="https://api.apis.guru/v2/specs/bitbucket.org/2.0/swagger.json"
  >
  </rapi-doc>

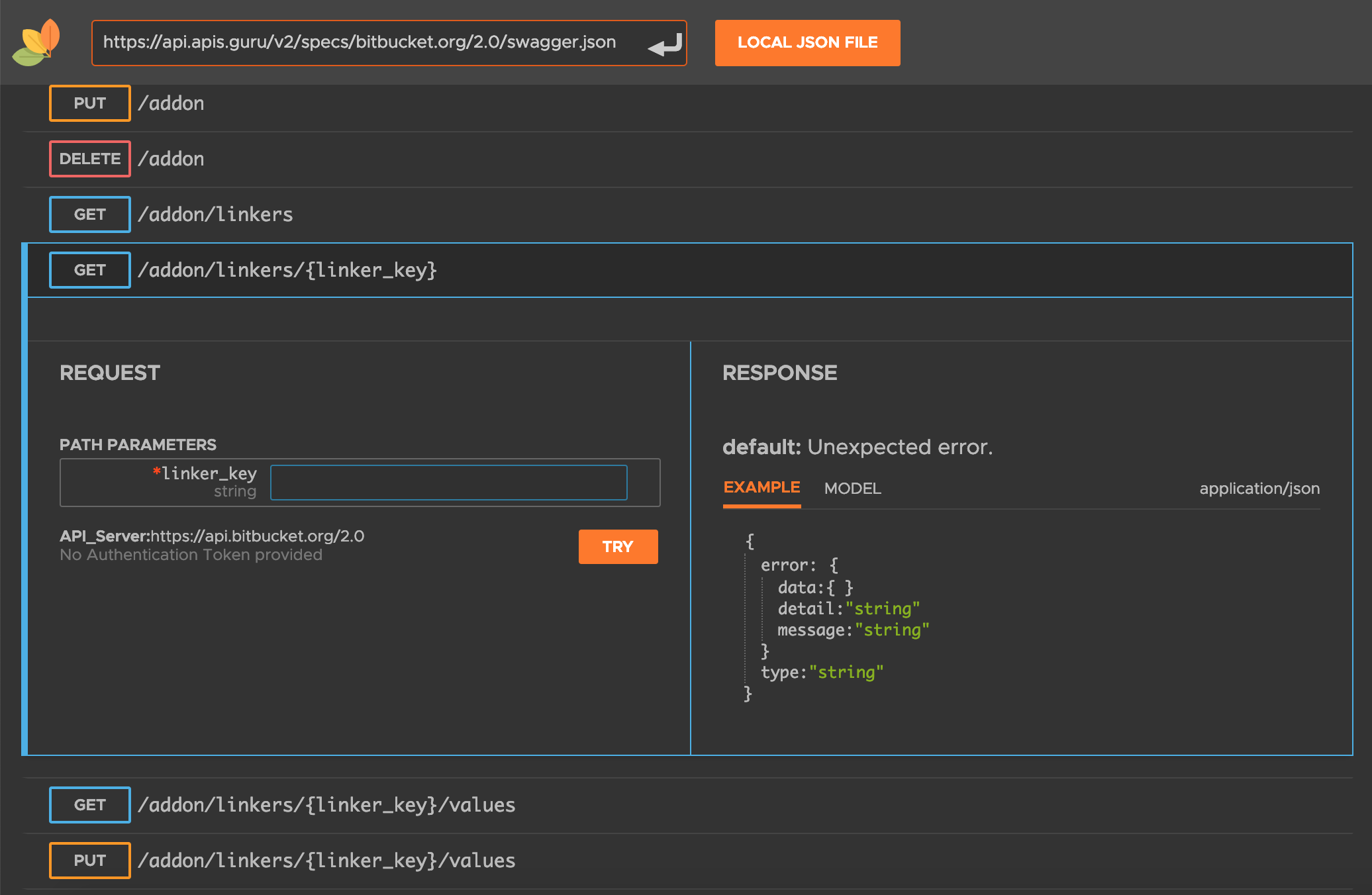

Dark Theme ( DEMO )

  <rapi-doc
    spec-url="https://api.apis.guru/v2/specs/bitbucket.org/2.0/swagger.json"
    theme="dark"
  >
  </rapi-doc>

Change Header Color with Dark Theme ( DEMO )

  <rapi-doc
    spec-url="https://api.apis.guru/v2/specs/bitbucket.org/2.0/swagger.json"
    header-color="#2d87e2"
    theme="dark"
  >
  </rapi-doc>

Integrate with other HTML document - No <iframe> ( DEMO )

  <rapi-doc
    spec-url="https://api.apis.guru/v2/specs/bitbucket.org/2.0/swagger.json"
    theme='dark'
    show-header='false'
    show-info='false'
    allow-authentication='false'
    theme='dark'
    layout="column"
  >
  </rapi-doc>

Change Font ( DEMO )

  <head>
    <link href="https://fonts.googleapis.com/css?family=Varela+Round"
     rel="stylesheet" >
  </head>

  <body>
    <rapi-doc
      spec-url="https://api.apis.guru/v2/specs/bitbucket.org/2.0/swagger.json"
      regular-font="'Varela Round', 'Arial Rounded MT Bold' "
    >
    </rapi-doc>
  </body>

Change Logo ( DEMO )

  <rapi-doc spec-url="https://api.apis.guru/v2/specs/bitbucket.org/2.0/swagger.json">
    <img
      slot="logo"
      src="https://img.icons8.com/color/48/000000/youtube-play.png"
    />
  </rapi-doc>

Add HTML content inside the spec ( DEMO )

  <rapi-doc spec-url="https://api.apis.guru/v2/specs/bitbucket.org/2.0/swagger.json">

    <!-- content at the top -->
    <p>This is an example to add external html content </li>
    <p>Ypu may add </li>
    <ul>
      <li> Table </li>
      <li> Text </li>
      <li> Images </li>
      <li> Links </li>
      <li> any HTML content </li>
    </ul>

    <!-- content at the bottom -->
    <p slot="footer"> This content will apear at the bottom </p>

  </rapi-doc>

Playground - change attributes using JavaScript   DEMO
