AST Viewers

An AST viewer is a useful way to help understand the TypeScript AST for some source code.

TypeScript AST Viewer

I’ve created this very basic web-based TypeScript AST viewer.

TypeScript AST Viewer

Features:

  • View code on left, tree in middle, and selected node’s properties on right.
  • Select a node in the tree to focus on that node’s properties.

TypeScript AST Viewer

I will improve and add more functionality to this in the future, but for now it will give you a good understanding of the tree.

Atom TypeScript

This AST viewer gives an excellent view of the AST.

  1. Install Atom.
  2. Install atom-typescript.
  3. Create a new typescript file.

  4. Paste in your typescript code.

    TypeScript file

  5. Important: Ensure the current typescript document has focus.
  6. Open the command palette (Windows/Linux: ctrl+shift+p, Mac: cmd+shift+p).

  7. Type TypeScript: Ast Full and hit enter.

    Command Palette

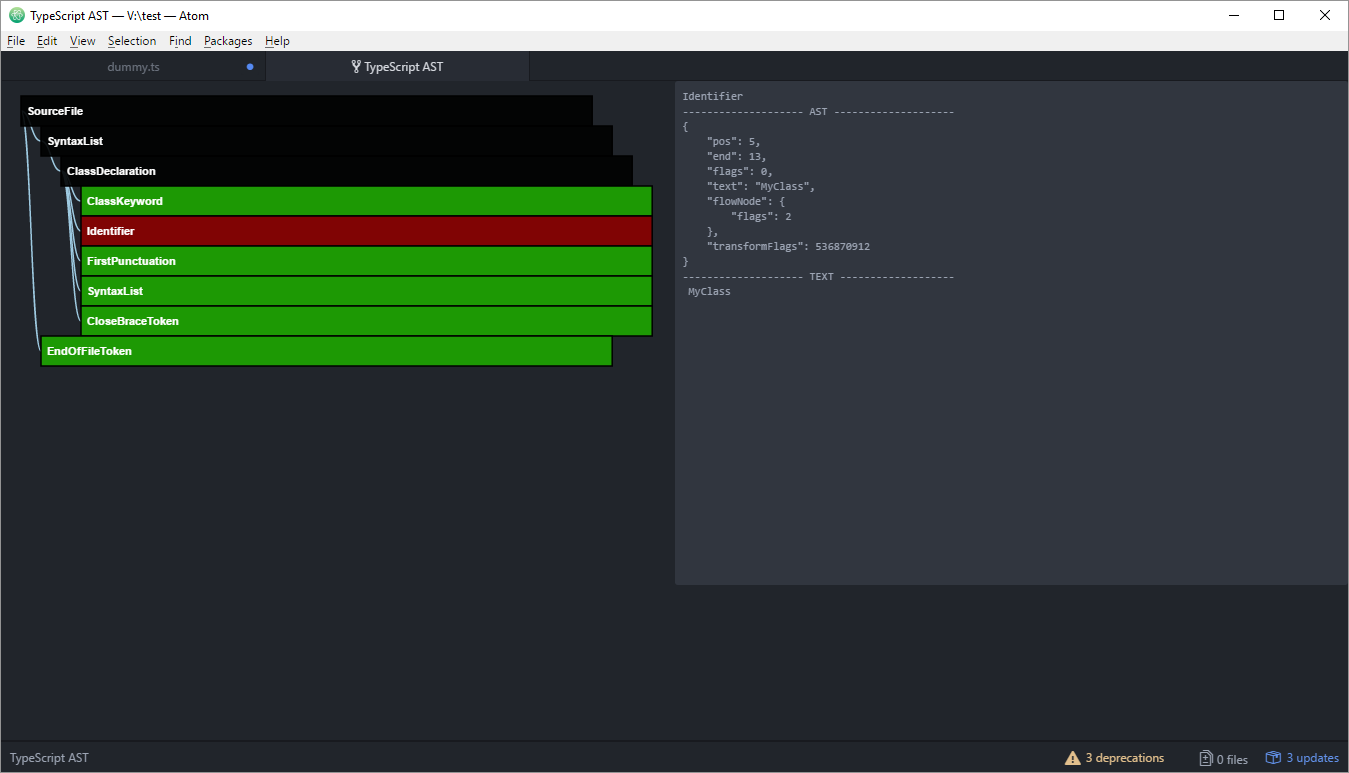

  8. A new tab will appear with the AST.

    atom-typescript AST Viewer

Bug warning: There seems to be an issue with the AST viewer where you have to close the “TypeScript AST” tab before running the TypeScript: Ast Full command again.
