Text Components

Swing offers sophisticated text components, from plain-text entry boxes to HTML renderers. For full coverage of Swing’s text capabilities, see O’Reilly’s Java Swing. In that encyclopedic book, several meaty chapters are devoted to text. It’s a huge subject; we’ll just scratch the surface here.

Let’s begin by examining the simpler text components. JTextField is a single-line text editor and JTextArea is a simple, multiline text editor. Both JTextField and JTextArea derive from the JTextComponent class, which provides the functionality they have in common. This includes methods for setting and retrieving the displayed text, specifying whether the text is “editable” or read-only, manipulating the cursor position within the text, and manipulating text selections.

Observing changes in text components requires an understanding of how the components implement the Model-View-Controller (MVC) architecture. You may recall from the last chapter that Swing components implement a true MVC architecture. It’s in the text components that you first get an inkling of a clear separation between the M and VC parts of the MVC architecture. The model for text components is an object called a Document. When you add or remove text from a JTextField or a JTextArea, the corresponding Document is changed. It’s the document itself, not the visual components, that generates text-related events when something changes. To receive notification of JTextArea changes, therefore, you register with the underlying Document, not with the JTextArea component itself:

    JTextArea textArea = new JTextArea();
    Document doc = textArea.getDocument();
    doc.addDocumentListener(someListener);

As you’ll see in an upcoming example, you can easily have more than one visual text component use the same underlying Document data model.

In addition, JTextField components generate ActionEvents whenever the user presses the Return key within the field. To get these events, just implement the ActionListener interface and register your listener using the addActionListener() method.

The next sections contain a couple of simple applications that show you how to work with text areas and fields.

The TextEntryBox Application

Our first example, TextEntryBox, creates a JTextArea and ties it to a JTextField, as you can see in Figure 18-1.

Figure 18-1. The TextEntryBox application

When the user hits Return in the JTextField, we receive an ActionEvent and add the line to the JTextArea’s display. Try it out. You may have to click your mouse in the JTextField to give it focus before typing in it. If you fill up the display with lines, you can test-drive the scroll bar:

    //file: TextEntryBox.java
    import java.awt.*;
    import java.awt.event.*;
    import javax.swing.*;

    public class TextEntryBox {

      public static void main(String[] args) {
        JFrame frame = new JFrame("Text Entry Box");

        final JTextArea area = new JTextArea();
        area.setFont(new Font("Serif", Font.BOLD, 18));
        area.setText("Howdy!\n");
        final JTextField field = new JTextField();

        frame.add(new JScrollPane(area), BorderLayout.CENTER);
        frame.add(field, BorderLayout.SOUTH);
        field.requestFocus();

        field.addActionListener(new ActionListener() {
          public void actionPerformed(ActionEvent ae) {
            area.append(field.getText() + '\n');
            field.setText("");
          }
        });

        frame.setDefaultCloseOperation( JFrame.EXIT_ON_CLOSE );
        frame.setSize(200, 300);
        frame.setVisible(true);
      }
    }

TextEntryBox is exceedingly simple; we’ve done a few things to make it more interesting. We give the text area a bigger font using Component’s setFont() method; fonts are discussed in Chapter 20. Finally, we want to be notified whenever the user presses Return in the text field, so we register an anonymous inner class as a listener for action events.

Pressing Return in the JTextField generates an action event, and that’s where the fun begins. We handle the event in the actionPerformed() method of our inner ActionListener implementation. Then, we use the getText() and setText() methods to manipulate the text that the user has typed. These methods can be used for JTextField and JTextArea, as these components are both derived from the JTextComponent class and, therefore, have some common functionality.

The event handler, actionPerformed(), calls field.getText() to read the text that the user typed into our JTextField. It then adds this text to the JTextArea by calling area.append(). Finally, we clear the text field by calling the method field.setText(""), preparing it for more input.

Remember, the text components really are distinct from the text data model, the Document. When you call setText(), getText(), or append(), these methods are shorthand for operations on an underlying Document.

By default, JTextField and JTextArea are editable; you can type and edit in both text components. They can be changed to output-only areas by calling setEditable(false). Both text components also support selections. A selection is a range of text that is highlighted for copying, cutting, or pasting in your windowing system. You select text by dragging the mouse over it; you can then cut, copy, and paste it into other text windows using the default keyboard gestures. On most systems, these are Ctrl-C for copy, Ctrl-V for paste, and Ctrl-X for cut (on the Mac it’s Command-C, Command-V, and Command-X). You can also programmatically manage these operations using the JTextComponent’s cut() , copy(), and paste() methods. You could, for example, create a pop-up menu with the standard cut, copy, and paste options using these methods. The current text selection is returned by getSelectedText(), and you can set the selection using selectText(), which takes an index range or selectAll().

Notice how JTextArea fits neatly inside a JScrollPane. The scroll pane gives us the expected scrollbars and scrolling behavior if the text in the JTextArea becomes too large for the available space.

Formatted Text

The JFormattedTextField component provides explicit support for editing complex formatted values such as numbers and dates. JFormattedTextField acts somewhat like a JTextField, except that it accepts a format-specifying object in its constructor and manages a complex object type (such as Date or Integer) through its setValue() and getValue() methods. The following example shows the construction of a simple form with different types of formatted fields:

    import java.text.*;
    import javax.swing.*;
    import javax.swing.text.*;
    import java.util.Date;

    public class

    FormattedFields
    {
        public static void main( String[] args ) throws Exception {
            Box form = Box.createVerticalBox();
            form.add( new JLabel("Name:") );
            form.add( new JTextField("Joe User") );

            form.add( new JLabel("Birthday:") );
            JFormattedTextField birthdayField =
                new JFormattedTextField(new SimpleDateFormat("MM/dd/yy"));
            birthdayField.setValue( new Date() );
            form.add( birthdayField );

            form.add( new JLabel("Age:") );
            form.add(new JFormattedTextField(new Integer(32)));

            form.add( new JLabel("Hairs on Body:") );
            JFormattedTextField hairsField
                = new JFormattedTextField( new DecimalFormat("###,###") );
            hairsField.setValue(new Integer(100000));
            form.add( hairsField );

            form.add( new JLabel("Phone Number:") );
            JFormattedTextField phoneField =
                new JFormattedTextField( new MaskFormatter("(###)###-####") );
            phoneField.setValue("(314)555-1212");
            form.add( phoneField );

            JFrame frame = new JFrame("User Information");
            frame.getContentPane().add(form);
            frame.pack();
            frame.setDefaultCloseOperation( JFrame.EXIT_ON_CLOSE );
            frame.setVisible(true);
        }
    }

JFormattedTextField can be constructed in a variety of ways. You can use a plain instance of java.lang.Number (e.g., Integer and Float) as a prototype or set the layout explicitly using a formatting object from the java.text package: java.text.NumberFormat, java.text.DateFormat, or the more arbitrary java.text.MaskFormatter. The NumberFormat and DateFormat classes of the java.text package are discussed in Chapters 10 and 11. MaskFormatter allows you to construct arbitrary physical layout conventions. In a moment, we’ll discuss input filtering and component validation, which also allow you to restrict the kinds of characters that could fill the fields or perform arbitrary checks on the data. Finally, we should mention that in this example, we’ve used a Box container. A Box is just a Swing container that uses a BoxLayout, which we’ll discuss more in Chapter 19.

After construction, you can set a valid value using setValue() and retrieve the last valid value with getValue(). To do this, you’ll have to cast the value back to the correct type based on the format you are using. For example, this statement retrieves the date from our birthday field:

    Date bday = (Date)birthdayField.getValue();

JFormattedTextField validates its text when the user attempts to shift focus to a new field (either by clicking with the mouse outside of the field or using keyboard navigation). By default, JFormattedTextField handles invalid input by simply reverting to the last valid value. If you wish to allow invalid input to remain in the field for further editing, you can set the setFocusLostBehavior() method with the value JFormattedTextField.COMMIT (the default is COMMIT_OR_REVERT). In any case, invalid input does not change the value property retrieved by getValue().

Filtering Input

JFormattedTextField does not know about all format types itself; instead, it uses AbstractFormatter objects that know about particular format types. The AbstractFormatters, in turn, provide implementations of two interfaces: DocumentFilter and NavigationFilter. A DocumentFilter attaches to implementations of Document and allows you to intercept editing commands, modifying them as you wish. A NavigationFilter can be attached to JTextComponents to control the movement of the cursor (as in a mask-formatted field). You can implement your own AbstractFormatters for use with JFormattedTextField, and, more generally, you can use the DocumentFilter interface to control how documents are edited in any type of text component. For example, you could create a DocumentFilter that maps characters to uppercase or strange symbols. DocumentFilter provides a low-level, edit-by-edit means of controlling or mapping user input. We will show an example of this now. In the following section, we discuss how to implement higher-level field validation that ensures the correctness of data after it is entered, in the same way that the formatted text field did for us earlier.

DocumentFilter

The following example, DocFilter, applies a document filter to a JTextField. Our DocumentFilter simply maps any input to uppercase. Here is the code:

    import java.text.*;
    import javax.swing.*;
    import javax.swing.text.*;

    public class DocFilter
    {
       public static void main( String[] args ) throws Exception
       {
          JTextField field = new JTextField(30);

          ((AbstractDocument)(field.getDocument())).setDocumentFilter(
             new DocumentFilter()
          {
             public void insertString(
                FilterBypass fb, int offset, String string, AttributeSet attr)
                   throws BadLocationException
                {
                   fb.insertString( offset, string.toUpperCase(), attr );
                }

             public void replace(
                FilterBypass fb, int offset, int length, String string,
                AttributeSet attr) throws BadLocationException
                {
                   fb.replace( offset, length, string.toUpperCase(), attr );
                }
          } );

          JFrame frame = new JFrame("User Information");
          frame.add( field );
          frame.pack();
          frame.setDefaultCloseOperation( JFrame.EXIT_ON_CLOSE );
          frame.setVisible(true);
       }
    }

The methods insertString() and replace() of the DocumentFilter are called when text is added to the document or modified. Within them, we have an opportunity to filter the text before passing it on. When we are ready to apply the text, we use the FilterBypass reference to pass it along. FilterBypass has the same set of methods, which apply the changes directly to the document. The DocumentFilter remove() method can also be used to intercept edits to the document that remove characters. One thing to note in our example is that not all Documents have a setDocumentFilter() method. Instead, we have to cast our document to an AbstractDocument. Only document implementations that extend AbstractDocument accept filters (unless you implement your own). This sad state of affairs is because the Document Filter API was added in Java 1.4, and it was decided that changes could not be made to the original Document interface.

Validating Data

Low-level input filtering prevents you from doing such things as entering a number where a character should be. In this section, we’re going to talk about high-level validation, which accounts for things like February having only 28 days or a credit card number being for a Visa or MasterCard. Whereas character filtering prevents you from entering incorrect data, field validation happens after data has been entered. Normally, validation occurs when the user tries to change focus and leave the field, either by clicking the mouse or through keyboard navigation. Java 1.4 added the InputVerifier API, which allows you to validate the contents of a component before focus is transferred. Although we are going to talk about this in the context of text fields, an InputVerifier can actually be attached to any JComponent to validate its state in this way.

The following example creates a pair of text fields. The first allows any value to be entered, while the second accepts only numbers between 0 and 100. When both fields are happy, you can freely move between them. However, when you enter an invalid value in the second field and try to leave, the program just beeps and selects the text. The focus remains trapped until you correct the problem.

    import javax.swing.*;

    public class Validator
    {
        public static void main( String[] args ) throws Exception {
            Box form = Box.createVerticalBox();
            form.add( new JLabel("Any Value") );
            form.add( new JTextField("5000") );

            form.add( new JLabel("Only 0-100") );
            JTextField rangeField = new JTextField("50");
            rangeField.setInputVerifier( new InputVerifier() {
                public boolean verify( JComponent comp ) {
                    JTextField field = (JTextField)comp;
                    boolean passed = false;
                    try {
                        int n = Integer.parseInt(field.getText());
                        passed = ( 0 <= n && n <= 100 );
                    } catch (NumberFormatException e) { }
                    if ( !passed ) {
                        comp.getToolkit().beep();
                        field.selectAll();
                    }
                    return passed;
                }
            } );
            form.add( rangeField );

            JFrame frame = new JFrame("User Information");
            frame.add(form);
            frame.setDefaultCloseOperation( JFrame.EXIT_ON_CLOSE );
            frame.pack();
            frame.setVisible(true);
        }
    }

We’ve created an anonymous inner class extending InputVerifier with this code. The API is very simple; at validation time, our verify() method is called, and we are passed a reference to the component needing checking. Here we cast to the correct type (we know what we are verifying, of course) and parse the number. If it is out of range, we beep and select the text. We then return true or false indicating whether the value passes validation.

You can use an InputVerifier in combination with a JFormattedTextField to both guide user input into the correct format and validate the semantics of what the user entered.

Say the Magic Word

Before we move on from our discussion of formatted text, we should mention that Swing includes a class just for typing passwords, called JPasswordField. A JPasswordField behaves just like a JTextField (it’s a subclass), except every character typed is echoed as the same, obfuscating character, typically an asterisk. Figure 18-2 shows the option dialog example that was presented in Chapter 17. The example includes a JTextField and a JPasswordField.

The creation and use of JPasswordField is basically the same as for JTextField. If you find asterisks distasteful, you can tell the JPasswordField to use a different character using the setEchoChar() method.

Normally, you would use getText() to retrieve the text typed into the JPasswordField. This method, however, is deprecated; you should use getPassword() instead. The getPassword() method returns a character array rather than a String object. This is done because character arrays are a little less vulnerable than Strings to discover by memory-snooping password sniffer programs and they can be erased directly and easily. If you’re not that concerned, you can simply create a new String from the character array. Note that methods in the Java cryptographic classes accept passwords as character arrays, not strings, so you can pass the results of a getPassword() call directly to methods in the cryptographic classes without ever creating a String.

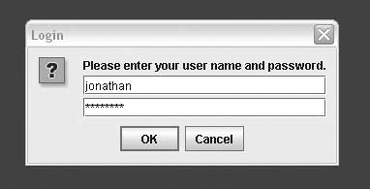

Figure 18-2. Using a JPasswordField in a dialog

Sharing a Data Model

Our next example shows how easy it is to make two or more text components share the same Document; Figure 18-3 shows what the application looks like.

Figure 18-3. Three views of the same data model

Anything the user types into any text area is reflected in all of them. All we had to do is make all the text areas use the same data model, like this:

    JTextArea areaFiftyOne = new JTextArea();
    JTextArea areaFiftyTwo = new JTextArea();
    areaFiftyTwo.setDocument(areaFiftyOne.getDocument());
    JTextArea areaFiftyThree = new JTextArea();
    areaFiftyThree.setDocument(areaFiftyOne.getDocument());

We could just as easily make seven text areas sharing the same document—or seventy. While this example may not look very useful, keep in mind that you can scroll different text areas to different places in the same document. That’s one of the beauties of putting multiple views on the same data; you get to examine different parts of it. Another useful technique is viewing the same data in different ways. You could, for example, view some tabular numerical data as both a spreadsheet and a pie chart. The MVC architecture that Swing uses means that it’s possible to do this in an intelligent way so that if numbers in a spreadsheet are updated, a pie chart that uses the same data is automatically updated, too.

This example works because, behind the scenes, there are a lot of events flying around. When you type in one of the text areas, the text area receives the keyboard events. It calls methods in the document to update its data. In turn, the document sends events to the other text areas telling them about the updates so that they can correctly display the document’s new data. But don’t worry about any of this; you just tell the text areas to use the same data, and Swing takes care of the rest:

    //file: SharedModel.java
    import java.awt.*;
    import java.awt.event.*;
    import javax.swing.*;

    public class SharedModel {
        public static void main(String[] args) {
        JFrame frame = new JFrame("Shared Model");

        JTextArea areaFiftyOne = new JTextArea();
        JTextArea areaFiftyTwo = new JTextArea();
        areaFiftyTwo.setDocument(areaFiftyOne.getDocument());
        JTextArea areaFiftyThree = new JTextArea();
        areaFiftyThree.setDocument(areaFiftyOne.getDocument());

        frame.setLayout(new GridLayout(3, 1));
        frame.add(new JScrollPane(areaFiftyOne));
        frame.add(new JScrollPane(areaFiftyTwo));
        frame.add(new JScrollPane(areaFiftyThree));

        frame.setDefaultCloseOperation( JFrame.EXIT_ON_CLOSE );
        frame.setSize(300, 300);
        frame.setVisible(true);
      }
    }

Setting up the display is simple. We use a GridLayout (discussed in the next chapter) and add three text areas to the layout. Then, all we have to do is tell the text areas to use the same Document.

HTML and RTF for Free

Most user interfaces will use only two subclasses of JTextComponent. These are the simple JTextField and JTextArea classes that we just covered. That’s just the tip of the iceberg, however. Swing offers sophisticated text capabilities through two other subclasses of JTextComponent: JEditorPane and JTextPane.

The first of these, JEditorPane, can display HTML and Rich Text Format (RTF) documents out of the box and provides a plug-in framework for support of other content types. It fires one more type of event, a HyperlinkEvent. Subtypes of this event are fired off when the mouse enters, exits, or clicks on a hyperlink. Combined with JEditorPane’s HTML display capabilities, it’s easy to build a simple browser. The following browser, as shown in Figure 18-4, has only about 70 lines of code.

    //file: CanisMinor.java
    import java.awt.*;
    import java.awt.event.*;
    import java.net.*;
    import javax.swing.*;
    import javax.swing.event.*;

    public class CanisMinor extends JFrame {
      protected JEditorPane mEditorPane;
      protected JTextField mURLField;

      public CanisMinor(String urlString) {
        super("CanisMinor v1.0");
        createGUI(urlString);
      }

      protected void createGUI( String urlString ) {
        setLayout(new BorderLayout());

        JToolBar urlToolBar = new JToolBar();
        mURLField = new JTextField(urlString, 40);
        urlToolBar.add(new JLabel("Location "));
        urlToolBar.add(mURLField);
        add(urlToolBar, BorderLayout.NORTH);
        mEditorPane = new JEditorPane();
        mEditorPane.setEditable(false);
        add(new JScrollPane(mEditorPane), BorderLayout.CENTER);

        openURL(urlString);

        mURLField.addActionListener(new ActionListener() {
          public void actionPerformed(ActionEvent ae) {
            openURL(ae.getActionCommand());
          }
        });

        mEditorPane.addHyperlinkListener(new LinkActivator());

        setSize(500, 600);
        setDefaultCloseOperation( JFrame.EXIT_ON_CLOSE );
      }

      protected void openURL(String urlString) {
        try {
          URL url = new URL(urlString);
          mEditorPane.setPage(url);
          mURLField.setText(url.toExternalForm());
        }
        catch (Exception e) {
          System.out.println("Couldn't open " + urlString + ":" + e);
        }
      }

      class LinkActivator implements HyperlinkListener {
        public void hyperlinkUpdate(HyperlinkEvent he) {
          HyperlinkEvent.EventType type = he.getEventType();
          if (type == HyperlinkEvent.EventType.ACTIVATED)
            openURL(he.getURL().toExternalForm());
        }
      }

      public static void main(String[] args) {
        String urlString = "http://en.wikinews.org/wiki/Special:Random";
        if (args.length > 0)
           urlString = args[0];
        new CanisMinor( urlString ).setVisible( true );
      }
    }

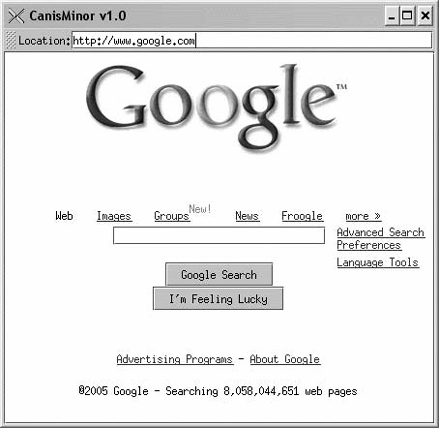

Figure 18-4. The CanisMinor application, a simple web browser

JEditorPane is the center of this little application. Passing a URL to setPage() causes the JEditorPane to load a new page, either from a local file or from somewhere across the Internet. To go to a new page, enter it in the text field at the top of the window and press Return. This fires an ActionEvent that sets the new page location of the JEditorPane. It can display RTF files, too (RTF is the text or nonbinary storage format for Microsoft Word documents).

Responding to hyperlinks correctly is simply a matter of responding to the HyperlinkEvents thrown by the JEditorPane. This behavior is encapsulated in the LinkActivator inner class. In this case, the only activity we are interested in is when the user “activates” the hyperlink by clicking on it. We respond by setting the location of the JEditorPane to the location given under the hyperlink. Surf away!

Behind the scenes, something called an EditorKit handles displaying documents for the JEditorPane. Different kinds of EditorKits can display different kinds of documents. For HTML, the HTMLEditorKit class (in the javax.swing.text.html package) handles the display. Currently, this class supports HTML 3.2. Sun says that future enhancements will move the HTMLEditorKit toward the HTML 4.0 standard, but even with Java 7 this area hasn’t seen much progress. The HTMLEditorKit handles other features of HTML, including HTML forms, in the expected way—automatically submitting results when a submit button is pushed. A FormSubmitEvent enables programmatic involvement in form submission.

If you browse around with this example browser, you will quickly find that most modern web pages can’t be rendered well by the current HTMLEditorKit. In their current state, JEditorPane and HTMLEditorKit are best suited for simple uses such as an HTML help system. There is an excellent commercial Java browser component from JadeLiquid called WebRenderer.

There’s another component here that we haven’t covered before—the JToolBar. This nifty container houses our URL text field. Initially, the JToolBar starts out at the top of the window. But you can pick it up by clicking on the little dotted box near its left edge, then drag it around to different parts of the window. You can place this toolbar at the top, left, right, or bottom of the window, or you can drag it outside the window entirely, where it will inhabit a window of its own. This behavior comes for free from the JToolBar class. We only had to create a JToolBar and add some components to it. The JToolBar is just a container, so we add it to the content pane of our window to give it an initial location.

Managing Text Yourself

Swing offers one last subclass of JTextComponent that can do just about anything you want: JTextPane. The basic text components, JTextField and JTextArea, are limited to a single font in a single style. But JTextPane, a subclass of JEditorPane, can display multiple fonts and multiple styles in the same component. It also includes support for highlighting, image embedding, and other advanced features.

We’ll take a peek at JTextPane by creating a text pane with some styled text. Remember, the text itself is stored in an underlying data model, the Document. To create styled text, we simply associate a set of text attributes with different parts of the document’s text. Swing includes classes and methods for manipulating sets of attributes, like specifying a bold font or a different color for the text. Attributes themselves are contained in a class called SimpleAttributeSet; these attribute sets are manipulated with static methods in the StyleConstants class. For example, to create a set of attributes that specifies the color red, you could do this:

    SimpleAttributeSet redstyle = new SimpleAttributeSet();
    StyleConstants.setForeground(redstyle, Color.red);

To add some red text to a document, you would just pass the text and the attributes to the document’s insertString() method, like this:

    document.insertString(6, "Some red text", redstyle);

The first argument to insertString() is an offset into the text. An exception is thrown if you pass in an offset that’s greater than the current length of the document. If you pass null for the attribute set, the text is added in the JTextPane’s default font and style.

Our simple example creates several attribute sets and uses them to add plain and styled text to a JTextPane, as shown in Figure 18-5:

    //file: Styling.java
    import java.awt.*;
    import java.awt.event.*;
    import javax.swing.*;
    import javax.swing.text.*;

    public class Styling extends JFrame {
      private JTextPane textPane;

      public Styling() {
        super("Stylin' v1.0");
        setSize(300, 200);

        textPane = new JTextPane();
        textPane.setFont(new Font("Serif", Font.PLAIN, 24));

        // create some handy attribute sets
        SimpleAttributeSet red = new SimpleAttributeSet();
        StyleConstants.setForeground(red, Color.red);
        StyleConstants.setBold(red, true);
        SimpleAttributeSet blue = new SimpleAttributeSet();
        StyleConstants.setForeground(blue, Color.blue);
        SimpleAttributeSet italic = new SimpleAttributeSet();
        StyleConstants.setItalic(italic, true);
        StyleConstants.setForeground(italic, Color.orange);

        // add the text
        append("In a ", null);
        append("sky", blue);
        append(" full of people\nOnly some want to ", null);
        append("fly", italic);
        append("\nIsn't that ", null);
        append("crazy", red);
        append("?", null);

        add(new JScrollPane(textPane), BorderLayout.CENTER);
        setDefaultCloseOperation( JFrame.EXIT_ON_CLOSE );
      }

      protected void append(String s, AttributeSet attributes) {
        Document d = textPane.getDocument();
        try { d.insertString(d.getLength(), s, attributes); }
        catch (BadLocationException ble) {}
      }

      public static void main(String[] args) {
        new Styling().setVisible(true);
      }
    }

Figure 18-5. Using styled text in a JTextPane

This example creates a JTextPane, which is saved in a member variable. Three different attribute sets are created using combinations of text styles and foreground colors. Then, using a helper method called append(), text is added to the JTextPane.

The append() method tacks a text String on the end of the JTextPane’s document, using the supplied attributes. Remember that if the attributes are null, the text is displayed with the JTextPane’s default font and style.

You can go ahead and add your own text if you wish. If you place the caret inside one of the differently styled words and type, the new text comes out in the appropriate style. Pretty cool, eh? You’ll also notice that JTextPane gives us word-wrapping behavior for free. And because we’ve wrapped the JTextPane in a JScrollPane, we get scrolling for free, too. Swing allows you to do some really cool stuff without breaking a sweat. Just wait—there’s plenty more to come.

This simple example should give you some idea of what JTextPane can do. It’s reasonably easy to build a simple word processor with JTextPane, and complex commercial-grade word processors are definitely possible.

If JTextPane still isn’t good enough for you, or you need some finer control over character, word, and paragraph layout, you can actually draw text, carets, and highlight shapes yourself. A class in the 2D API called TextLayout simplifies much of this work, but it’s outside the scope of this book. For coverage of TextLayout and other advanced text drawing topics, see Java 2D Graphics by Jonathan Knudsen (O’Reilly).
